Best in class, far above average
The proven and powerful LED light module now in its 3rd generation with many innovations in detail.
Waterproof, available in numerous lengths and with the highest light output in its class, the new PULZAR G-3 sets new standards. Especially in aquariums where several light bars often have to be installed to provide sufficient light, a single PULZAR G-3 module is usually sufficient. This saves costs and creates additional space above the aquarium.
Highlights PULZAR G3
- Luminaire body made of seawater-resistant aluminium
- Brushed anthracite anodised surface
- Passive cooling through appropriately calculated luminaire design
- Waterproof to IP68 with integrated silicone seals
- Biologically optimally coordinated colour spectra
- Diffuser glass for homogeneous, glare-free light distribution / Tropic version
- Diamon prism optics / marine version
- External 24 volt power supply unit with overvoltage protection
- White LED up to 220 lumens per watt
- End caps made of glass-fibre reinforced ABS with guide grooves
- Use of professional full spectrum mid power LED
- Tropic version with W RGB LED
- Tropic version with long-term tested, optimal plant spectrum
- Marine version with special LED in the UV and violet range
- slim housing with dimensions width*height = 55x23 mm
- Waterproof cable gland with bend protection
- Suitable for installation in covers
- 4-pole quick disconnect coupling
- Cable length luminaire 150 cm, cable length power supply 100 cm
- Guide rail for mounting brackets and holders
- Fully insertable into the SPHERA luminaire profile
- Optionally various mounting options
- 3 separate channels individually controllable (lynk pro Control)
- LED controller, custom daily schedules for natural sunrises and sunsets can also be created.
PULZAR G3 - The new benchmark
The newly developed aluminium housing in elegant anthracite anodised with a finely brushed surface. Each light module is anodised individually so that all cut edges are protected against corrosion. The entire luminaire body serves as a cooling element for optimum temperature control of the now even more powerful LED.
Three variants - tropic, marine & deep blue
Each of the two versions of the PULZAR G3 already contains the perfectly harmonised biological light spectrum. Optimised for the respective requirements.
All PULZAR G3s are fitted with the most powerful LEDs currently available on the market. The white LEDs, for example, generate enormous light values of up to 220 lumens per watt.
The new PULZAR G-3 marine & tropic LED lighting is perfectly customised for the respective application ex works with a preconfigured light scenario.
The tropic version has a premium W RGB fitting and the marine version completely covers the UV and blue range from 400-480 nm using a special colour composition.
Supplemented with the other colours coolwhite, cyan and red. The deep blue version imitates the light in deep waters. The LED is focussed on the visible blue range from UV-A to royal blue and indigo.
PULZAR G3 marine- new diamond prism
In addition to the extensive color spectrum, the new PULZAR G-3 marine offers a unique light reflection geometry. Our Diamond Prism optics have a diamond-shaped prism structure and thus guarantee perfect color mixing of all LED colours as well as the highest possible light output. This new light optic achieves an even and wide spread illumination with almost no loss.

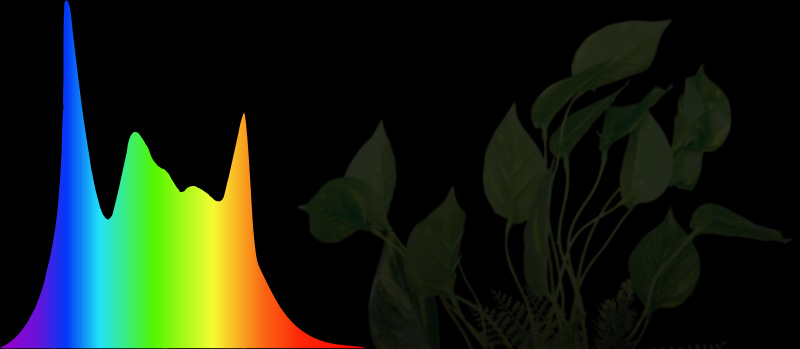

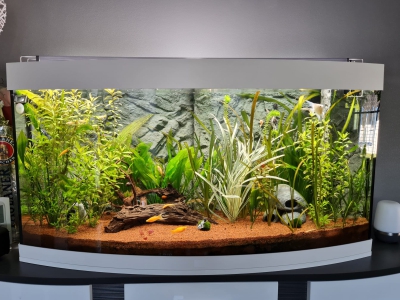

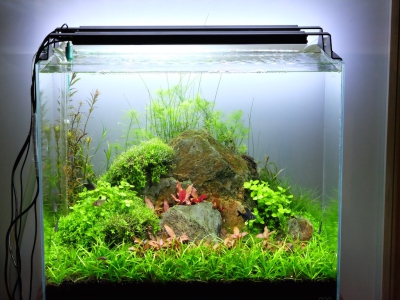

PULZAR G3 tropic - tropical aquariums, vertical farming and horticultur
The unique LED configuration of the tropic version has been tried and tested in numerous practical tests and continuously improved. The result is a light spectrum composed of different RGB/W LED colours, which ensures optimum plant growth under water and successfully prevents the formation of algae.
Fish are also shown in their natural colours and are provided with the best conditions for healthy growth.
For emersed plants, for example in vertical farming or plant cultivation in general, this special light spectrum ensures optimum growth and natural lighting conditions.
In this way, pests and diseases on plants can be recognised under this light spectrum, which would often remain undetected under purely violet lighting.
The very high light output also guarantees the sustainable growth of even very light-sensitive plants, making the PULZAR G3 tropic the ideal light source.
It goes without saying that every PULZAR tropic is also equipped with our unique Diamond Prism optics, which ensure perfect colour mixing of all spectra and thus enable homogeneous illumination.
PULZAR G3 marine - for coral breeding and marine aquaculture
The new PULZAR G-3 marine is absolutely waterproof and ensures constant brightness with intelligent current management and high-quality LEDs. The sophisticated thermal management ensures a long lifespan of the LED. With its very high light output of more than 80 watts per meter, there is always enough power for your reef tank.
The new PULZAR G-3 marine and the deepblue version offer a unique light system in addition to the extensive colour spectrum.
Our Diamond Prism optics have a diamond-shaped prism structure and thus guarantee perfect colour mixing of all spectra as well as the highest possible light output.
This new light optic achieves uniform and wide-spreading illumination with virtually no loss. The new PULZAR G-3 marine is completely waterproof and ensures constant brightness with intelligent power management and high-quality LEDs.
The sophisticated thermal management ensures a long LED service life. With a high light output and more than 80 watts per meter, there is always sufficient power available
Mounting options
The PULZAR G3 LED modules can still be used in the same way as their predecessors with our mounting options. This means that you can choose between the optionally available cable mounting systems, the surface-mounted brackets or the popular mounting sliders for attachment to any frame
Conveniently controllable
Every PULZAR G-3 already has the optimum light spectrum for the respective application. For individual customisation, these can be easily connected to our new developed lynk WIFI control interfaces via ‘plug and play’ and thus enable the realistic simulation of sunrises and sunsets as well as numerous weather simulations including moon cycles.
The three individual light groups can be individually controlled both in terms of colour selection and intensity.
Schedules can be copied or light groups of any size can be created. Up to four PULZARs can be controlled with a single WIFI controller.
Details PULZAR G3 tropic
| L x W x H | Power | Lumen | PAR | KELVIN |
| 155 x 23 x 55 mm | 12W | 1219 | 520 | 6700 |
| 295 x 23 x 55 mm | 20W | 2430 | 550 | 6700 |
| 495 x 23 x 55 mm | 36W | 4800 | 570 | 6700 |
| 695 x 23 x 55 mm | 46W | 6100 | 580 | 6700 |
| 895 x 23 x 55 mm | 65W | 8500 | 550 | 6700 |
| 1095 x 23 x 55 mm | 78W | 9720 | 550 | 6700 |
| 1195 x 23 x 55 mm | 90W | 12100 | 560 | 6700 |
| 1495 x 23 x 55 mm | 110W | 14600 | 560 | 6700 |
Details PULZAR G3 marine
| L x W x H | Power | Lumen | PAR | KELVIN |
| 155 x 23 x 55 mm | 10W | 445 | 400 | 9,500 - 25,000 |
| 295 x 23 x 55 mm | 20W | 890 | 530 | 9,500 - 25,000 |
| 495 x 23 x 55 mm | 40W | 1775 | 660 | 9,500 - 25,000 |
| 695 x 23 x 55 mm | 50W | 2220 | 690 | 9,500 - 25,000 |
| 895 x 23 x 55 mm | 70W | 3120 | 730 | 9,500 - 25,000 |
| 1095 x 23 x 55 mm | 85W | 3560 | 870 | 9,500 - 25,000 |
| 1195 x 23 x 55 mm | 95W | 4450 | 900 | 9,500 - 25,000 |
| 1495 x 23 x 55 mm | 110W | 5330 | 970 | 9,500 - 25,000 |
Details LED placement PULZAR G3 marine
| length x wide x height | 155 mm | 295 mm | 495 mm | 695 mm | 895 mm | 1095 mm | 1195 mm | 1495 mm |
| Quantity of LED segments | 1 | 2 | 4 | 5 | 7 | 9 | 10 | 12 |
| Quantity of LEDs | 21 | 42 | 84 | 105 | 147 | 189 | 210 | 252 |
| Quantity of LED Channels | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
LED placement marine
- ⬤ UV 405- 410 nm
- ⬤ UV 415 - 420 nm
- ⬤ Deep Blue 435 - 445 nm
- ⬤ Royal Blue 450 - 465 nm
- ⬤ Blue 470 - 480 nm
- ⬤ Cyan 480 - 490 nm
- ⬤ Hyper Red 660 - 670 nm
- ⬤ Cold White 6.500 Kelvin
- Blue component total spectrum 77%
LED Configuration per segment
- ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ Channel 1
- ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ Channel 2
- ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ Channel 3
Photometric evaluation PULZAR G3 tropic
| Parameter | Channel 1-3 | Channel 1 | Channel 2 | Channel 3 |
| CCT | 6700 K | 6373 K | 7047 K | 7882 K |
| CIE 1931 x | 0,3098 | 0,3150 | 0,2818 | 0,3155 |
| CIE 1931 y | 0,3250 | 0,3302 | 0,4299 | 0,2372 |
| CRI (RA) | 97 | 84 | 65 | 13 |
| Re(R1~R15) | 94 | 78 | 49 | -17 |
| GAI | 100,9 | 90,2 | 51,9 | 153,2 |
| Beleuchtungsstärke (lx) |
16400 lx
|
8861 lx | 4904 lx | 3226 lx |
| PPFD (μmol/ ㎡ s) | 253.74 | 127,77 | 59,28 | 73,29 |
| λp | 452 nm | 451 nm | 521 nm | 636 nm |
| λD | 487 nm | 490 nm | 519 nm |
0 nm
|
|
Ft Candela
|
1523.7 | 823,2 | 455,3 | 299,7 |
LED placement tropic
- ⬤ Blue 470- 480 nm
- ⬤ Green 490 - 500 nm
- ⬤ Hyperred 660 - 670 nm
- ⬤ Cold White 6.500 Kelvin
- ⬤ White 6.000 Kelvin
LED Configuration per segment
- ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ Channel 1
- ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ Channel 2
- ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ ⬤ Channel 3
